GRC Series Facultatif Échantillons de données techniques

Remplissez le téléchargement ou contactez - nous

Aperçu

Composants formés à chaud : à partir de la bobine

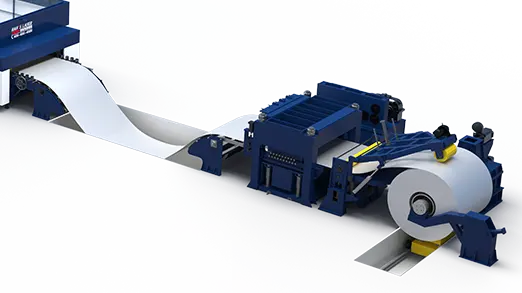

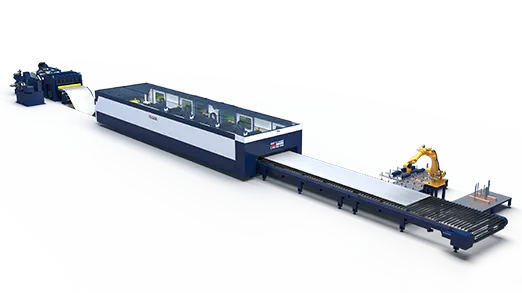

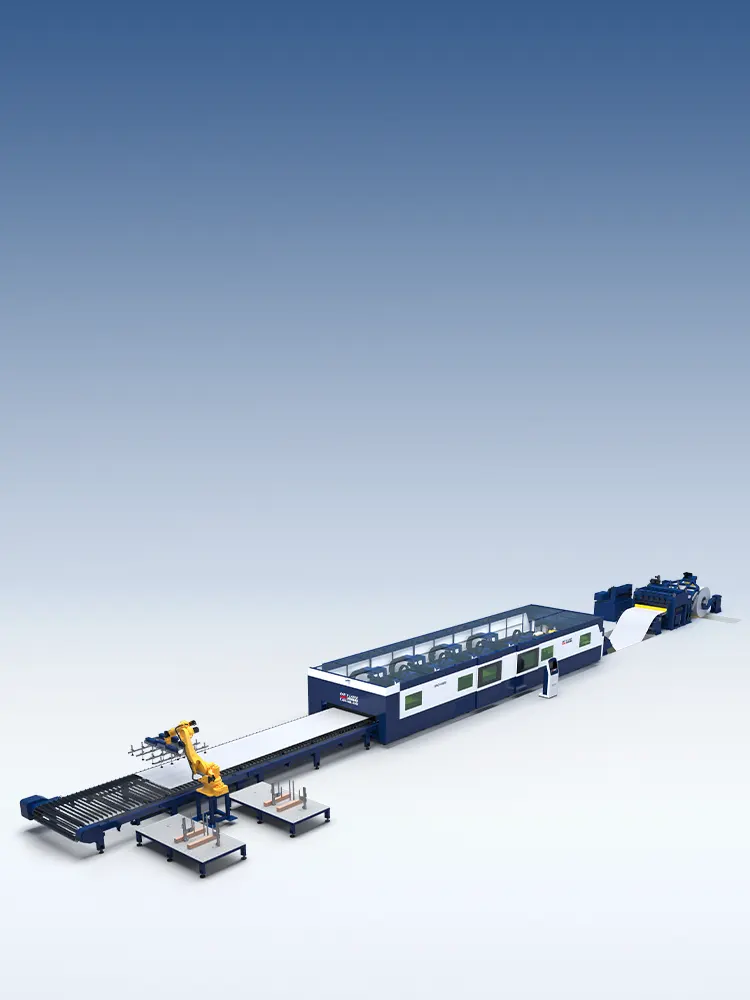

Decoiling -leveling -laser cutting -blanking, fluent process by one click. Coil fed laser cutting system has the characteristics of "flexibility and rapid processing". It combines coil uncoiling and optical fiber laser cutting together to achieve fast online cutting, uninterrupted and efficient cutting, realize flexible production, improve the utilization rate of plates, and replace the traditional metal mold. At the same time, for some work pieces that need customized small batch production, it not only shortens the production cycle, but also greatly saves the production cost.

Déroulage à haut rendement

● Bobineuse extensible à quatre mâchoires, à entraînement hydraulique, avec une plage d'expansion de Φ470 à 520 mm, adaptée aux bobines de 508 mm. Équipée d'un manchon en caoutchouc, elle peut s'étendre jusqu'à 620 mm pour accueillir des bobines de 610 mm de diamètre intérieur.
● Un frein à disque est installé à l'extrémité de l'arbre principal pour le freinage de stationnement.

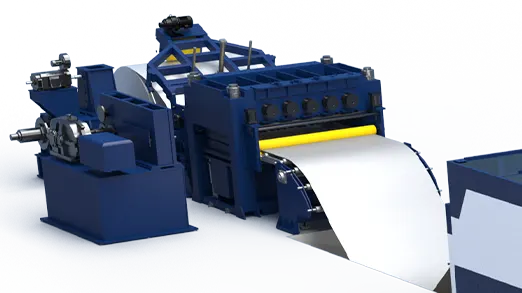

Nivellement de haute précision

● Aplanisseur à six rouleaux et 19 étages, adapté aux tôles laminées à froid, aux tôles laminées à chaud, aux tôles en acier inoxydable, aux tôles galvanisées et aux tôles décapées avec σs ≤ 780 MPa. Vitesse d'aplanissement : 0–20 m/min;

● Épaisseur de tôle 1–1,2 mm : précision de nivellement ≤ 1,0 mm/m² ;

● Épaisseur de tôle 1,2–3,0 mm : précision de nivellement ≤ 2,5 mm/m² ;

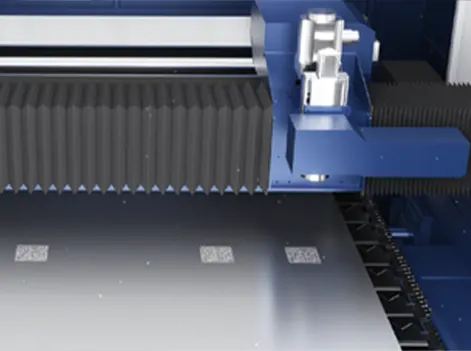

Coupe rapide synchrone à une ou plusieurs têtes

● Découpe bilatérale de formes complexes en une seule passe : gain de temps et productivité accrue.

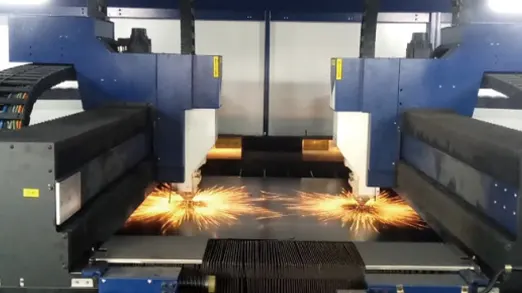

● Découpe laser dynamique asynchrone avec une double tête de découpe laser permettant de façonner des pièces complexes simultanément. Le logiciel d’imbrication calcule le parcours de traitement optimal pour une utilisation maximale des matériaux.

Déchiquetage de déchets

Optimisation du recyclage des chutes de tôle. Table de découpe sur chenilles équipée de lames de découpe à aiguilles. Lors du traitement de la tôle, la table de découpe fonctionne de manière synchrone et à la même vitesse que le système d'alimentation servo du dérouleur. Les déchets broyés sont évacués par un convoyeur à bande ; ils se fragmentent en morceaux plus petits lors de leur extraction, ce qui permet d'accroître considérablement la productivité.
